進口防爆電動襯氟球閥介質的流經內壁采用耐強腐蝕聚四氟乙烯(PTFE/PFA)材料襯里工藝,避免強腐蝕介質與金屬接觸,造成金屬腐蝕和損壞。廣泛使用于化工,制藥,生物等使用領域。
Fluorine-lined Ball Valve
The medium flowing through the inner wall of the fluorine-lined ball valve adopts the corrosion-resistant polytetrafluoroethylene(PTFE/PFA) lining process to prevent strong corrosive media fromcontacting with metal, causing metal corrosion and damage. It iswidely used in chemical, pharmaceutical, biological and other fields.
材料
閥體:WCB、CF8、CF3、CF8M、CF3M球芯:CF8、CF3、CF8M、CF3M閥座:FRP、PTFE、PFA、PO、PE
Material
Valve body:WCB,CF8,CF3,CF8M,CF3M Ball:CF8,CF3,CF8M,CF3M
Valve seat: FRP,PTFE,PFA,PO,PE
適用介質
液氯、液氨、除熔融堿金屬,元素氟外的各種濃度的酸、堿、鹽、水、有機酸等強腐蝕性介質
Applicable medium
Various concentrations of acids, alkalis, salts, water, organic acids, and other highly corrosive media

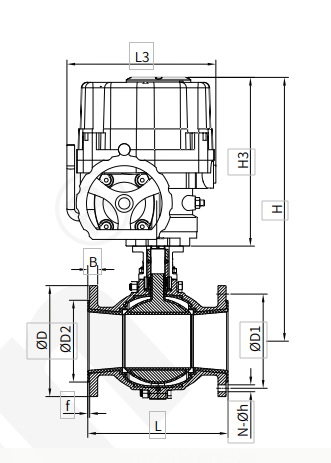

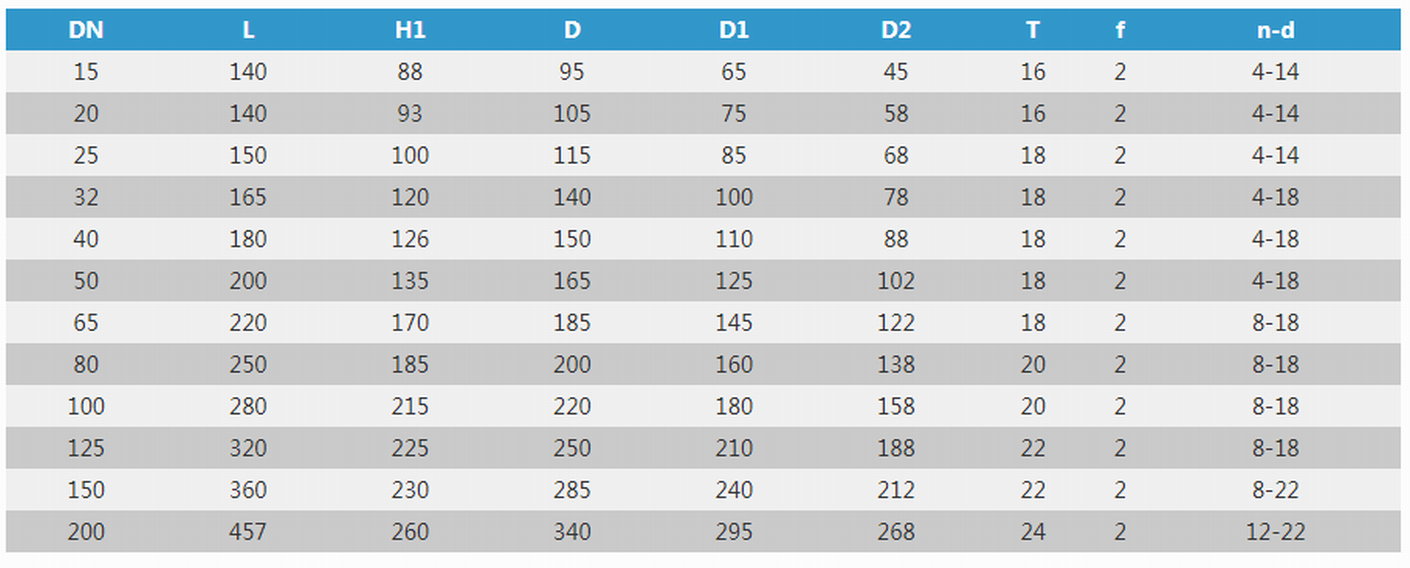

外形尺寸Overall Dimension
